Manual Motor Starter
ABB MS116, MS132 and MS165 MPCB are manual motor starters engineered to provide dependable short circuit, overload, and phase loss protection for three-phase motors. The MS116 series is suited for compact motor control requirements, while MS132 offers greater application flexibility and MS165 supports higher current ratings. Key features include an integrated disconnect function, ambient temperature compensation, trip-free mechanism, and a rotary handle with clear ON/OFF position indication.
Rated Operational Voltage: Up to 690V AC Frequency: 50/60 Hz
Actuator Type: Rotary Handle
Contact Position Indication: ON / OFF
Net Width: compact 45 mm width
Trip Mechanism: Thermal-Magnetic
Mounting: DIN rail or panel mounting
Standards Compliance: IEC 60947-2 / IEC 60947-4-1
Accessories for MPCB

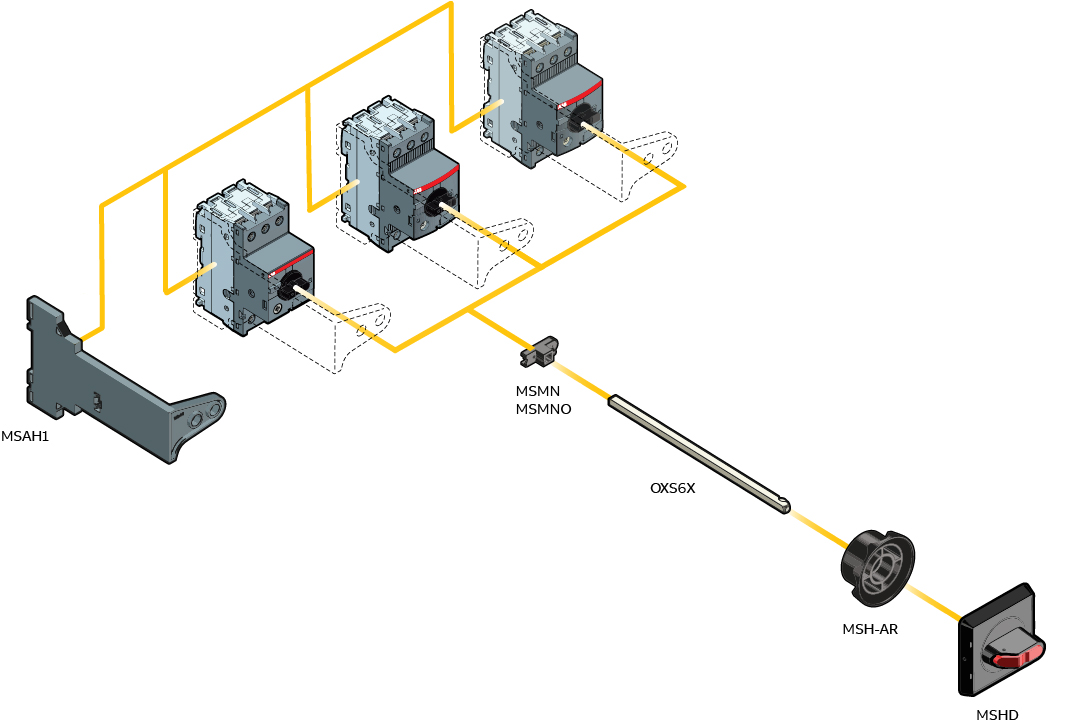

ABB Starter Accessories – Handles, Signalling Contacts, Shunt Trips and Undervoltage Release enhance the functionality and safety of manual motor starters. The door-coupling rotary mechanism allows external operation while preventing panel door opening when the starter is in ON position. The assembly includes handle, shaft, driver, shaft alignment ring, and shaft support components. Signalling contacts enable status monitoring, while shunt trips allow remote tripping. The UA1 undervoltage release automatically trips the manual motor starter or prevents restart when supply voltage fails.
Rated Shaft Diameter: 6 mm
Maximum Shaft Length: 180 mm
Handle Protection Degree: IP64 (MSHD handles)
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
| Image |
Ordering Code
|
frame | types of accessory | accessory decription | Qty | Accessories | Enq |
|---|---|---|---|---|---|---|---|
|
OXS6X130 MPCB |
Shaft extension for door coupling drive |
diameter 6 mm. |
|
|||
|
MSHD-LB1 |
Handle |
-- |
|
|||
|
MSHD-LY2 |
Handle |
-- |
|
|||
|
MSHD-LTB3 |
Handle |
-- |
|
|||
|
MSHD-LTY3 |
Handle |
-- |
|
|||
|
MSMN4 |
Driver |
-- |
|
|||
|
MSMNO5 |
Driver |
-- |
|
|||
|
MSH-AR |
Shaft alignment ring |
-- |
|
|||
|
MSAH1 |
Shaft supporter |
-- |
|
|||
|
AA1-24 |
Shunt trip |
20 ... 24 V |
|
|||
|
AA1-110 |
Shunt trip |
110 V |
|
|||
|
AA1-230 |
Shunt trip |
200-240 V |
|
|||
|
AA1-400 |
Shunt trip |
350-415 V |
|
|||
|
UA1-24 |
Undervoltage release |
24 V |
|
|||
|
UA1-110 |
Undervoltage release |
110 V |
|
|||
|
UA1-230 |
Undervoltage release |
230 V |
|
|||
|
UA1-415 |
Undervoltage release |
415 V |
|
|||
|
HKF1-11 |
Aux contacts – mountable on the front |
1NO+1NC |
|
|||
|
HKF1-20 |
Aux contacts – mountable on the front |
2 NO |
|
|||
|
HKF1-10 |
Aux contacts – mountable on the front |
1NO |
|
|||
|
|
HKF1-01 |
Aux contacts – mountable on the front |
1NC |
|
|||
|
HK1-11 |
Aux contacts – mountable on the front |
1NO+1NC |
|
|||
|
HK1-20 |
Aux contacts – mountable on the front |
2 NO |
|
|||
|
|
HK1-02 |
Aux contacts – mountable on the front |
2 NC |
|
|||
|
SK1-11** |
Tripped alarm Signalling contacts |
1NO+1NC |
|
|||
|
|
SK1-20** |
Tripped alarm Signalling contacts |
2 NO |
|
|||
|
|
SK1-02** |
Tripped alarm Signalling contacts |
2 NC |
|
|||
|
|
CK1-11# |
Short circuit Signalling contacts |
1NO+1NC |
|
|||
|
|
CK1-20# |
Short circuit Signalling contacts |
2 NO |
|
|||
|
|
CK1-02# |
Short circuit Signalling contacts |
2 NC |
|
